High-performance, adjustable front suspension for the Toyota LandCruiser Prado 250 Series.

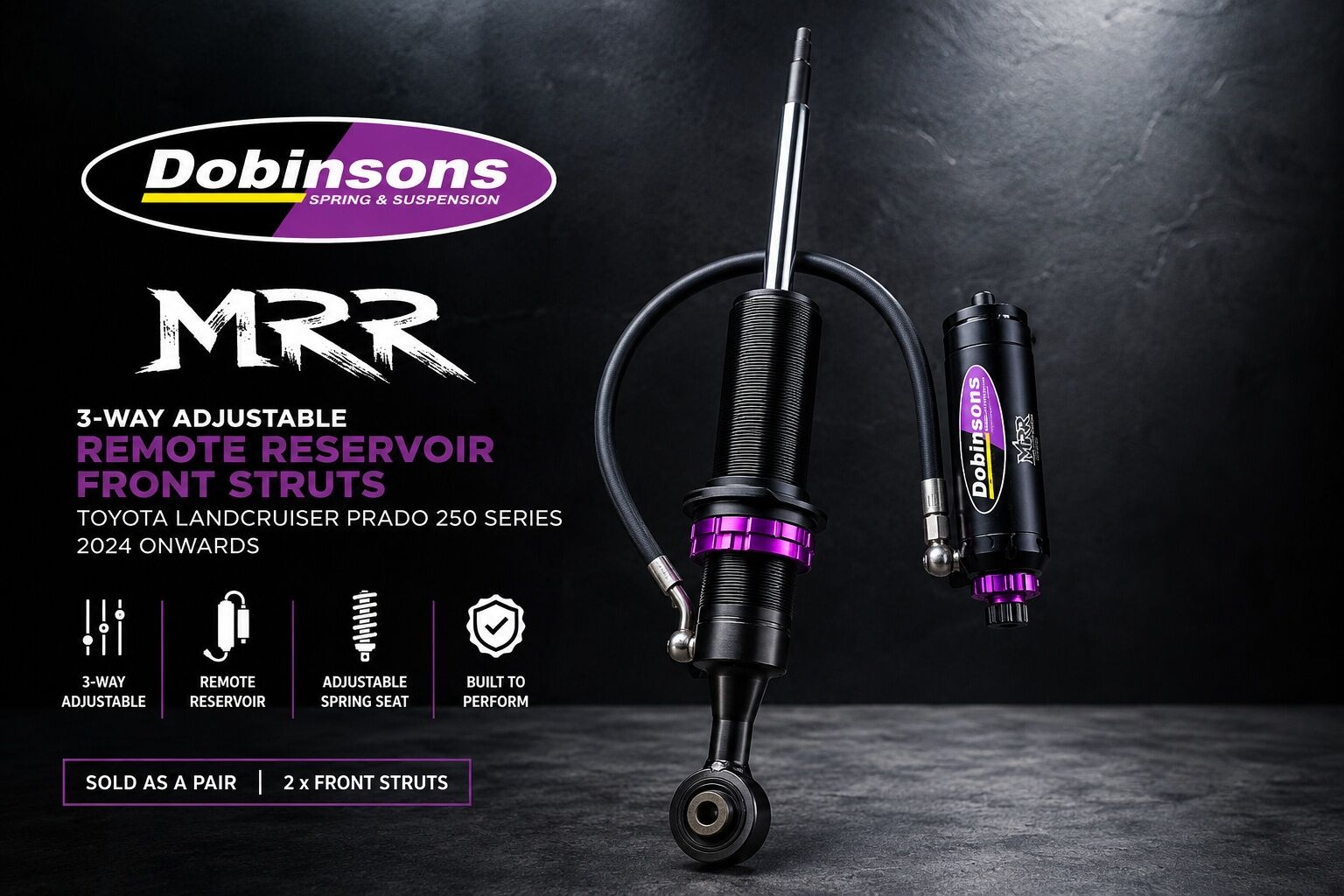

Give your Toyota LandCruiser Prado 250 Series greater suspension control, adjustability and off-road performance with Dobinsons MRR 3-Way Adjustable Remote Reservoir Front Struts.

Designed specifically for the Prado 250 Series from 2024 onwards, the Dobinsons MRR system combines race-bred monotube technology with a remote reservoir and three-way damping adjustment. This gives you the ability to fine-tune the front suspension to suit your vehicle, driving conditions and load.

With a direct bolt-on design, adjustable spring seat, high-flow billet aluminium race piston and fully rebuildable construction, the MRR front struts are an excellent choice for Prado 250 owners looking for a serious suspension upgrade for touring, towing and demanding off-road use.

Sold as a pair.

Key Features & Benefits

• 3-way adjustable damping allows the suspension to be tuned to suit different terrain, loads and driving conditions.
• Remote reservoir design provides additional oil capacity and helps manage heat during prolonged off-road driving.
• Monotube shock absorber technology provides consistent damping performance and improved vehicle control.
• Adjustable spring seat height provides additional flexibility when setting up the Prado's front suspension.
• Direct bolt-on design provides a purpose-built fit for the Prado 250 Series.
• Fully rebuildable construction allows the shock absorbers to be serviced and rebuilt when required.
• Heavy-duty construction is designed for the demands of Australian touring and off-road driving.
• High-flow billet aluminium race piston is designed to provide efficient shock absorber performance.
• 60mm 6063 aluminium remote reservoir increases oil capacity and assists with heat management.
• High-strength hard chrome plated shock shaft is designed for durability and long-term performance.

Why Choose MRR for Your Prado 250?

The Prado 250 is a capable vehicle, but once you start adding accessories, carrying touring equipment or spending more time off-road, the demands placed on the suspension increase.

The Dobinsons MRR system gives Prado 250 owners considerably more control over their suspension setup than a conventional fixed-damping shock absorber. The three-way adjustment allows the damping to be tuned to suit the way the vehicle is being used, while the remote reservoir helps manage heat during extended periods of suspension activity.

This makes the MRR system particularly well suited to Prado 250s being built for long-distance touring, outback travel, towing and serious off-road use.

Built for the Toyota LandCruiser Prado 250 Series

The MRA59-A660 is specifically designed for the Toyota LandCruiser Prado 250 Series from 2024 onwards.

The direct bolt-on design provides a purpose-built suspension solution for the Prado 250, while the adjustable spring seat gives additional flexibility when configuring the vehicle around its final suspension and accessory setup.

Whether your Prado is being built for weekend adventures or extended Australian touring, the MRR system provides the adjustability and performance required to get more from the vehicle's suspension.

BushSkinz Expert Tip

Recommended Setup

For a Prado 250 being built for Australian touring or off-road use, we recommend pairing the Dobinsons MRR front struts with correctly selected Dobinsons coil springs based on your vehicle's actual front-end weight.

• Dobinsons MRR 3-Way Adjustable Remote Reservoir Front Struts
• Correctly rated Dobinsons front coil springs
• Suspension components matched to the vehicle's final accessory and touring load
• Professional installation
• Wheel alignment following installation
• Final damping adjustment once the vehicle is loaded in its normal driving configuration

Need help choosing the right Prado 250 suspension setup? Contact BushSkinz 4x4 and we can help you select components to suit your vehicle's intended use and load.

Technical Specifications

Brand	Dobinsons
Series	MRR
Part Number	MRA59-A660
Vehicle	Toyota LandCruiser Prado 250 Series
Fitment	2024 onwards
Type	Monotube Remote Reservoir
Damping Adjustment	3-Way Adjustable
Remote Reservoir	60mm 6063 Aluminium
Spring Seat	Height Adjustable
Design	Direct Bolt-On
Construction	Fully Rebuildable
Sold By BushSkinz 4x4	Pair – 2 Front Struts

What's Included?

• 2 x Dobinsons MRR MRA59-A660 Front Struts

Coil springs and strut top caps are not included.

Frequently Asked Questions

What Prado 250 models do these struts fit?

The Dobinsons MRA59-A660 MRR front struts are designed for the Toyota LandCruiser Prado 250 Series from 2024 onwards.

Are these front struts sold as a pair?

Yes. BushSkinz 4x4 supplies the MRA59-A660 front struts as a pair of two front struts, providing the components required for the front suspension.

Do the MRR struts include coil springs?

No. Coil springs and strut top caps are not included. The adjustable spring seat allows the struts to be configured with the appropriate coil spring for your Prado 250's front-end load and suspension requirements.

What does 3-way adjustable mean?

The MRR system features three-way damping adjustment, allowing the shock absorber to be tuned to suit different driving conditions, terrain and vehicle loads. This gives you significantly greater suspension tuning capability than a conventional fixed-damping shock absorber.

Are the Dobinsons MRR struts suitable for touring?

Yes. The monotube remote reservoir design, adjustable damping and robust construction make the MRR system well suited to Prado 250s used for touring, towing and extended off-road driving.

Are these struts rebuildable?

Yes. The Dobinsons MRR system features a fully rebuildable design, allowing the shock absorbers to be serviced and rebuilt when required.

Do I need a wheel alignment after fitting?

Yes. A professional wheel alignment is recommended after installing suspension components or changing the vehicle's suspension height.

Dobinsons Warranty

Dobinsons Spring & Suspension provides a 2-year warranty on shock absorbers, subject to their warranty terms and conditions.

The warranty applies to defects in materials or workmanship and requires Dobinsons to be notified in writing of an alleged defect within two years from the date of invoice. Products may need to be returned for inspection before a warranty repair or replacement is approved.

Dobinsons states that shock absorbers are covered by a 2-year warranty provided the vehicle does not have a modified exhaust system. Their warranty also excludes products used in extreme sports or competition racing, vehicles producing 50mm or more lift, and coil springs or shock absorbers fitted with additional coil or strut spacers on coil-over type assemblies.

The warranty also excludes products that have been incorrectly installed, modified, misused, abused, altered or used under abnormal conditions.

For complete warranty conditions, please refer to the Dobinsons Spring & Suspension Warranty Terms & Conditions.

Upgrade Your Prado 250 Suspension

If you're building your Toyota LandCruiser Prado 250 for touring, towing or serious off-road use, the Dobinsons MRR 3-Way Adjustable Remote Reservoir Front Struts provide a significant upgrade in suspension control and adjustability.

With remote reservoir technology, three-way damping adjustment, an adjustable spring seat, monotube construction and a fully rebuildable design, the MRR system gives you the ability to fine-tune your Prado's suspension around the way you actually use your vehicle.

Pair them with correctly matched Dobinsons coil springs and build a Prado 250 suspension setup ready for wherever the track takes you.
